Centralised CCTV across a premium residential estate - 7 towers, one control room
A leading residential developer needed a centralised surveillance system to monitor seven residential towers from one location, strengthen access control and speed up incident response. Enview deployed 294+ IP cameras integrated into a single videowall control room over high-speed fibre and Ethernet.
- Client
- Leading residential developer
- Sector
- Residential real estate
- Service line
- Video Surveillance · Network
- Scope
- 7 towers, 294+ cameras
- Site

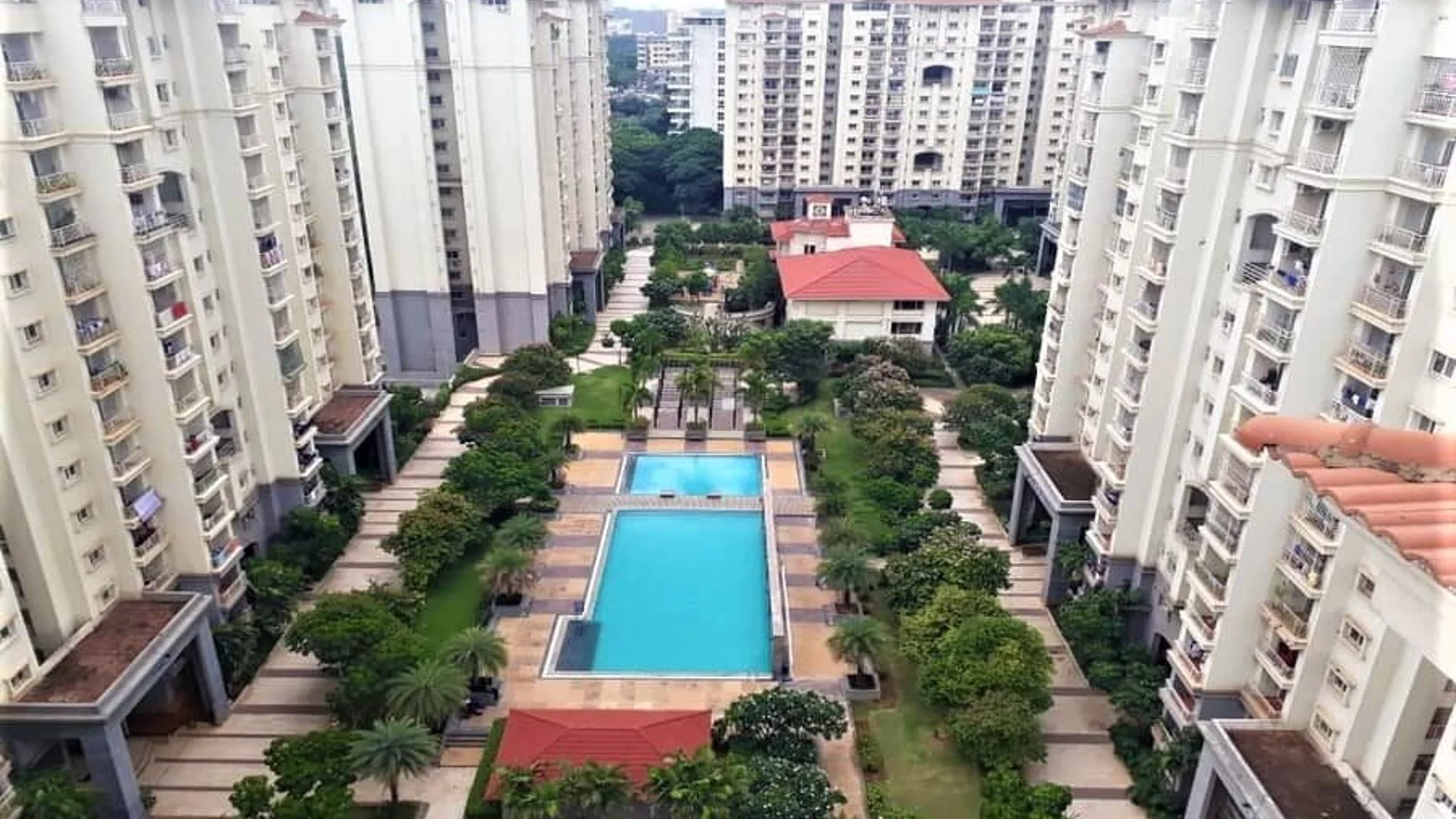

- Residential estate, Bengaluru
Background
The residential community needed a centralised, comprehensive surveillance system to improve resident safety, monitor multiple towers from one location, strengthen access control and enable faster incident response across the property.
The developer selected Enview for an end-to-end CCTV solution with centralised monitoring, high-speed optical-fibre connectivity, 4K NVR recording, ANPR and a scalable security infrastructure for the entire community.
Solution
Enview deployed 294+ IP cameras across seven residential towers, integrated into a centralised, videowall-based control room with role-based access.
- 294+ IP cameras across 7 towers, with CCTV coverage for 34 lifts
- 5 enterprise NVRs (64 channels each) with 4K recording and 60-day retention
- High-speed Ethernet and optical-fibre connectivity between every tower and the control room
- ANPR at the main entrance and a videowall control centre with role-based access
Implementation
All seven towers were integrated into a single centralised monitoring centre over high-speed Ethernet and optical fibre. The surveillance infrastructure provides seamless real-time monitoring, reliable recording and rapid incident response across the entire residential complex.
Results
294+
IP cameras installed across 7 towers
7
Residential towers on one monitoring system
34
Lifts under CCTV coverage
5
Enterprise NVRs, 64 channels each
60-day
4K video retention
1
Centralised videowall control room
Enview Technologies
System integration for CCTV and e-security - large residential and campus deployments unified under one control room.
