City surveillance for a fast-growing industrial township
An industrial-township authority faced rising concerns over crime, vandalism and security threats across a rapidly growing area, with no centralized way to monitor it. Across two phases, Enview delivered an IP-based city surveillance system - cameras, an optical-fibre backbone, centralized storage and a video-wall monitoring station - and integrated the township's legacy analog cameras into it.
- Client
- Industrial-township authority
- Sector
- Industrial township / city surveillance (government)
- Service line
- Video Surveillance · Network
- Timeline
- Two phases, 2011-2013
- Scope
- Township-wide - 52 cameras on a 5 km fibre backbone
Background
The township's rapid industrial growth brought increasing concerns about crime, vandalism and potential security threats. The authority needed a centralized surveillance system capable of monitoring large public areas efficiently - enabling proactive security management and faster incident response.
The authority selected Enview for its expertise in large-scale IP-based city surveillance: centralized video management, optical-fibre connectivity, and end-to-end delivery covering installation, commissioning, maintenance and long-term support.
Solution
Enview implemented a complete city surveillance solution across the township in two phases, from street-level cameras and poles to the central monitoring room.

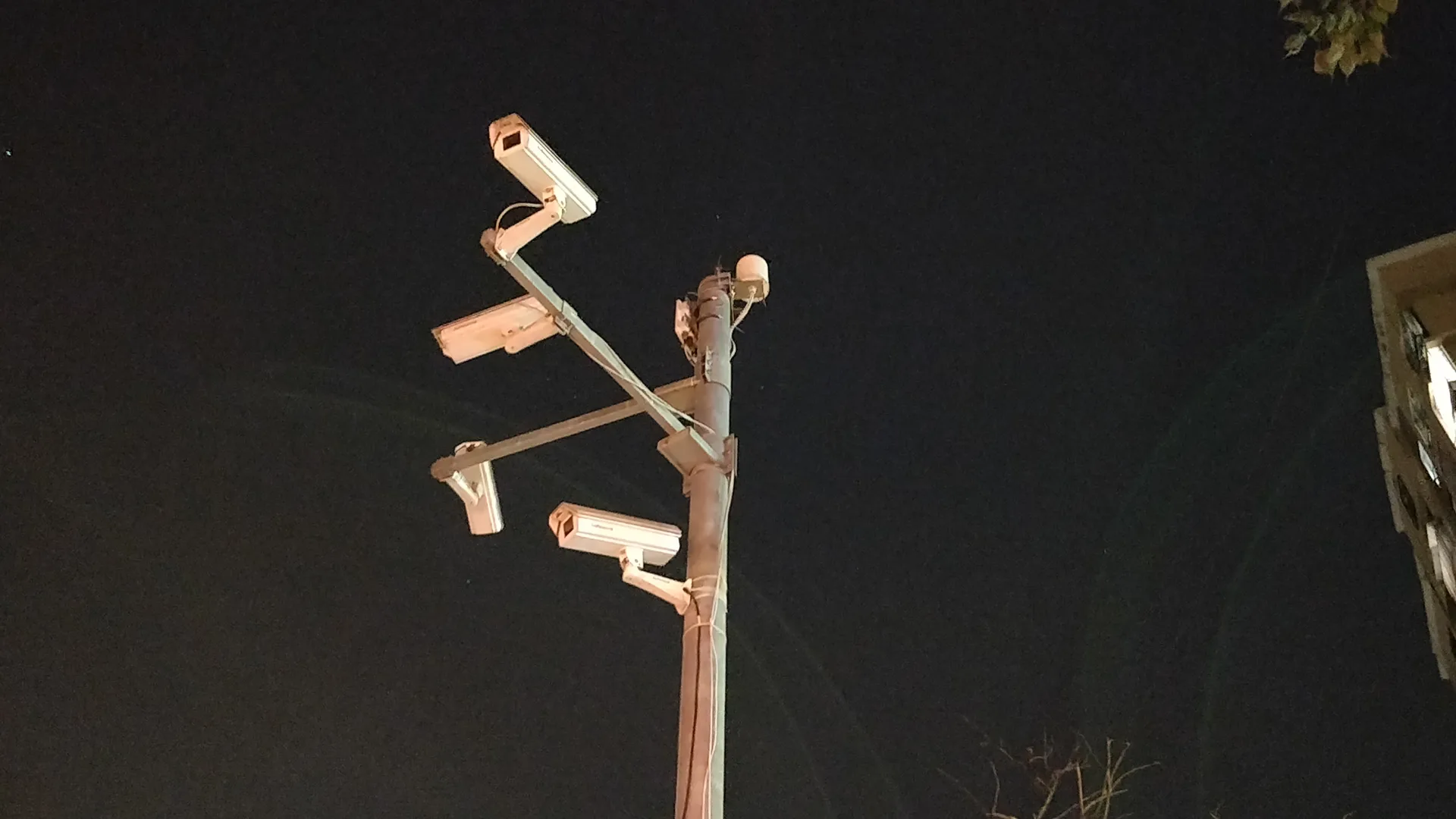

- 37 IP cameras (megapixel and fixed) across the township, on 20 camera poles with civil works
- 15 existing analog cameras integrated into the IP-based system via video encoders
- 5,000 m optical-fibre backbone with centralized storage servers and NAS
- NVRs, video management software and a large-display video wall at the monitoring station
- Remote-viewing client stations, 18 UPS sets, and ongoing OFC maintenance
Implementation
The project was executed in two phases - the first agreed in January 2011, the second in December 2012, with completion in November 2013. Both phases were delivered to the customer's satisfaction: the surveillance infrastructure, fibre backbone, centralized monitoring and maintenance services were commissioned successfully, and the customer confirmed the entire system was functioning well.
Results
37
IP cameras deployed across two phases
15
Legacy analog cameras integrated into the IP system
5 km
Optical-fibre backbone laid and maintained
20
Camera poles erected with civil works
18
UPS sets keeping the system on clean power
2
Phases delivered to completion, 2011-2013
